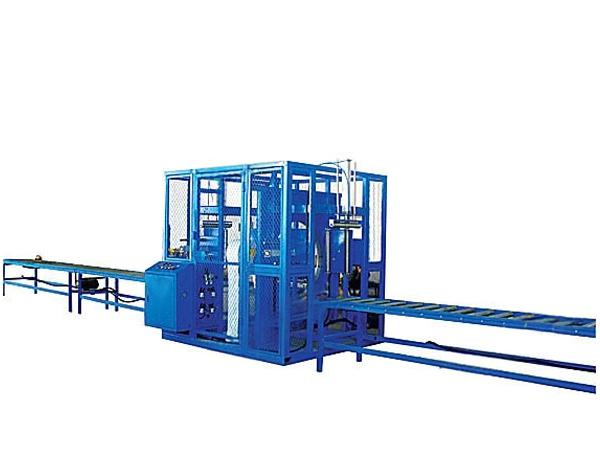

XS600 Horizontal Wrapping Machine

The XS600 horizontal stretch wrapping machine is designed for packaging a wide range of long, slender products. It is extensively used in industries such as plastic profiles, aluminum materials, panels, pipes, and textiles. The machine operates by using a rotating arm system to wrap packaging material around the product as it moves forward at a constant speed; simultaneously, a tensioning mechanism adjusts the material’s tension to create a secure, tightly wrapped package with a neat, spiral pattern. The resulting packaging is aesthetically pleasing and offers protection against dust and moisture. The machine is characterized by stable performance, ease of operation, and reliability, helping to improve packaging quality and enhance market competitiveness. ※ Key Specifications

＊ Package cross-section diameter: 600 mm

＊ Maximum package weight: 500 kg

＊ Total power: 1.5 kW

＊ Power supply voltage: 380 V

＊ Rotating ring speed: 70 rpm (max)

＊ Operating efficiency: 30 units/hour (depending on specific packaging conditions)

＊ Equipment dimensions: 2840 mm (L) × 1500 mm (W) × 1800 mm (H)

＊ Packaging Materials

＊ Film type: LLDPE stretch film / PVC film (compliant with relevant industry standards)

＊ Film width: 250 mm

＊ Film roll outer diameter: φ270 mm

＊ Film roll inner diameter: φ76.2 mm

＊ Film thickness: 0.035 mm – 0.50 mm

＊ Conveyor Specifications

＊ Conveyor height: 860 mm

＊ Conveyor width: 600 mm

＊ Conveyor rollers: Diameter φ60 mm; spacing 140 mm

＊ Conveying speed: 10 m/min

This equipment is a custom-made machine; once ordered, it cannot be returned or exchanged.
