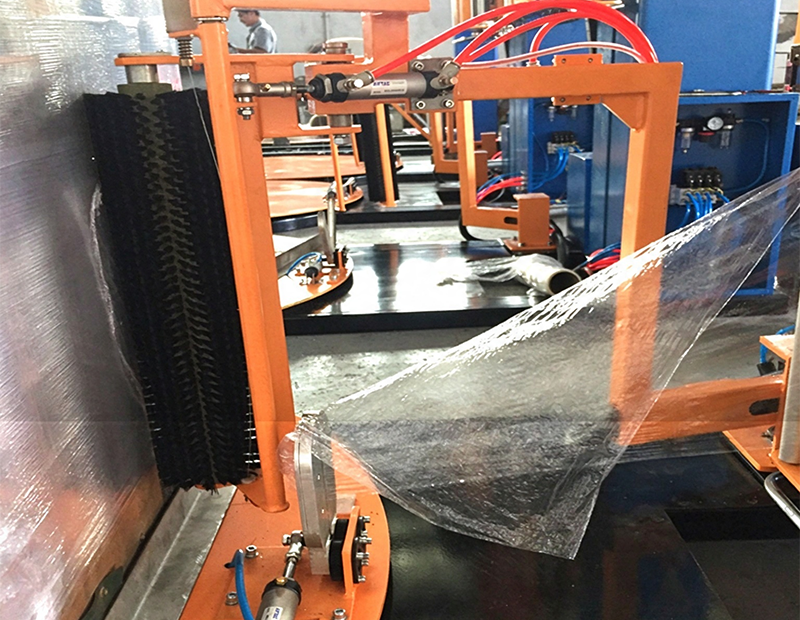

XAT300PPS has a cut&grab film unit that will cut the film and wipe the film tail against the pallet.
7’’ touch screen allows simple operation. Heavy-duty design ensures long life and minimum maintenance.
| Size of The Loads ( Pallets) to be Wrapped | |
| Min load size | 500mm (L) X 500mm (W) |
| Max load size | 1200mm (L) X 1200mm (W) |
| Max load height | 2400mm(94”) (Option: 2800mm, 3000mm) |
| Max load weight | 2000kg (4400lbs) (Option: 2500kgs, 3000kgs) |
| Machine Performance | |
| Packing efficiency | 30-40 loads/hour |
| Load height sensing by PE | YES |
| Turntable soft start & stop | YES |
| Turntable rotation speed: | 3-12 rpm adjustable |
| Turntable diameter | 1650mm (Option: 1800mm, 2000mm,2200mm, 2400mm) |
| Turntable height | 85mm |
| Move the machine with forklift | Front & Rear |
| Carriage Up/down Speed | Adjustable |
| Film Delivery System | |

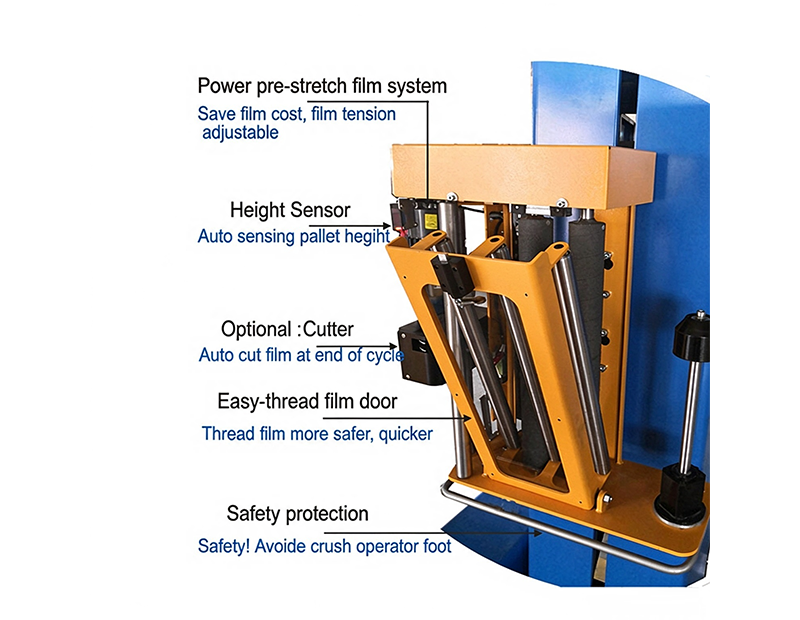

| Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. Help you save Packing cost= Save money!! 2. Film tension adjustable 3. Carriage door opens for effortless roll change and thread film |
| Film Automatic Clamp & Cut unit | |
| Cutter | Yes (Hot wire cutter) |
| Film tail wipe unit | Yes ( Pneumatic control) |
| Film tail clamp unit | Yes ( Pneumatic control) |
| Pneumatic System | 0.6-0.8Mpa 1000ml/min |
| Electrical Features | |
| Power supply voltage | 220 V 1Phase – 50/60 Hz |
| Power | 1.5Kw |
| Machine Weight & Size | |
| Machine size (LXWXH) | 2675mm X1650mm X2860mm |
| Machine weight | N.W. 800KG G.W.900KG |
Options available to custom build to meet specific needs
1.BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
2.WEIGHT CAPACITY
Increase weight capacity for heavy loads (2500kgs, 3000kgs);
3.EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm
