First, the automatic stretch wrapping machine offers exceptional efficiency. Traditional packaging methods rely on manual labor, which is time-consuming and strenuous; in contrast, this machine enables fully automated operation, significantly boosting packaging speed and productivity. Users simply place the product on the machine’s platform and configure the desired parameters, and the machine automatically wraps the packaging material around the product.
Second, the automatic stretch wrapping machine delivers excellent packaging results. It can be adjusted based on set parameters to accommodate products of various shapes and sizes. Whether the items are flat, cylindrical, or irregularly shaped, the machine ensures a tight, secure wrap, protecting the products from damage during transport.

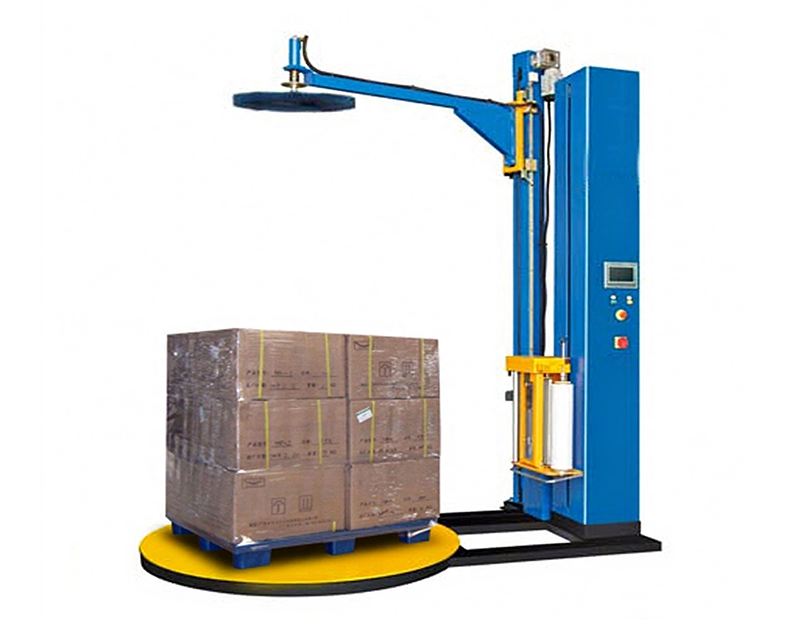

The automatic stretch wrapping machine is a highly efficient and intelligent piece of packaging equipment widely used in the logistics, warehousing, and transportation industries. It is primarily designed to wrap products or goods in plastic film or other packaging materials, executing the entire packaging process automatically.
First, the automatic stretch wrapping machine offers exceptional efficiency. Traditional packaging methods rely on manual labor, which is time-consuming and physically demanding; in contrast, this machine enables fully automated operation, significantly boosting packaging speed and productivity. Operators simply place the product on the machine’s platform and configure the required parameters, and the machine automatically wraps the packaging material around the product.
Second, the machine delivers excellent packaging results. It can adapt to products of various shapes and sizes based on preset parameters. Whether the items are flat, cylindrical, or irregularly shaped, the machine ensures a tight, secure wrap, protecting the products from damage during transport.
Furthermore, the machine features intelligent capabilities. Equipped with advanced control systems and sensors, it automatically identifies product dimensions and weight, adjusting the packaging process accordingly. It also monitors the tension of the packaging material in real-time, making automatic adjustments to ensure a snug fit—avoiding wraps that are either too loose or too tight.
Finally, the automatic stretch wrapping machine is safe and reliable. It incorporates advanced safety features, such as emergency stop mechanisms and protective guards, to ensure operator safety. Additionally, it includes self-diagnostic and alarm functions; in the event of a malfunction, the machine automatically halts and displays an error message, facilitating easy maintenance and troubleshooting. I. Technical Specifications

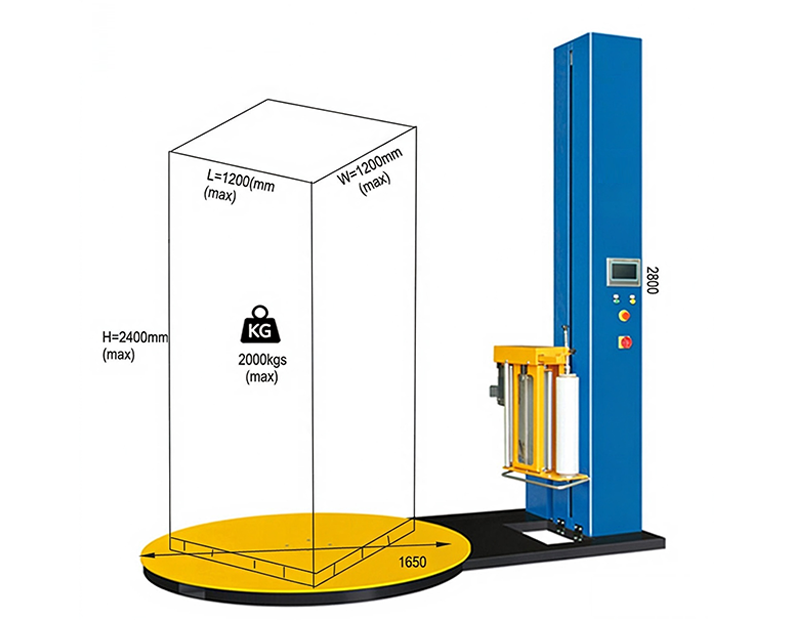

Packaging Range: Length 500–1300mm, Width 500–1300mm; Height 2000mm (L-type) / 2500mm (H-type)
Packaging Efficiency: 20–40 pallets/hour
Turntable Dimensions: Diameter 1650mm, Height 78mm
Turntable Load Capacity: 2000kg (max)
Turntable Speed: 0–12 rpm
Machine Weight: 650kg
Overall Dimensions: L-type: 2535 x 1650 x 2860mm
Motor Power: Turntable 0.75kW, Mast 0.4kW, Film Carriage 0.35kW
Power Supply: Single-phase 220V AC / 50Hz / 1Ph
II. Key Features
PLC programmable control for full machine operation; adjustable wrapping layers/cycles (1–9 turns)
User-friendly panel icons for simple and convenient operation
Automatic load height detection via photoelectric sensor
Star-pattern wear-resistant support rollers for low-noise operation
Variable frequency drive (VFD) for turntable speed; soft start/stop and automatic reset
Film carriage with pre-stretch mechanism (250% stretch ratio); easy film loading/threading
Chain-driven mechanism; independent speed settings for film carriage ascent and descent
III. Packaging Materials
Packaging Material: LLDPE stretch film
Thickness: 12–30μm
Width: 500mm
Film Roll Core ID: 76.2mm; Max. Roll OD: 260mm
